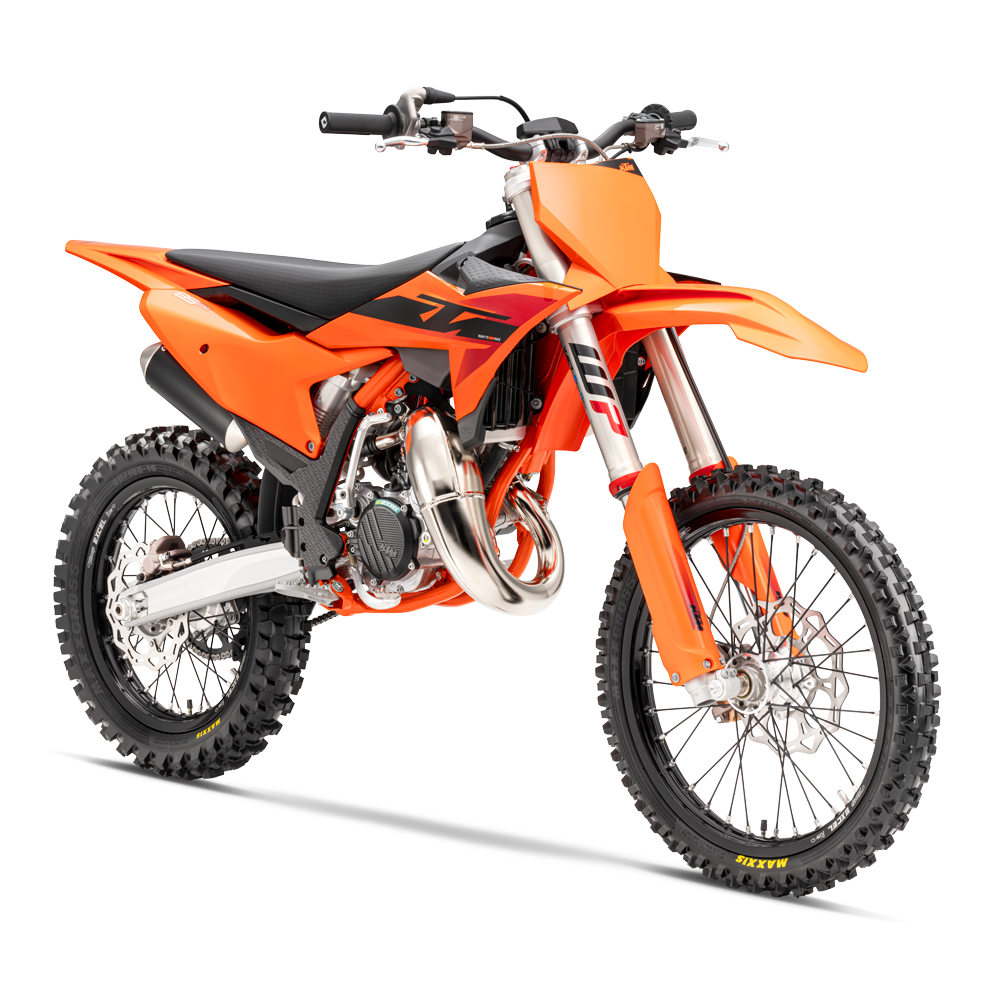

2026 KTM SX 85 19/16

2026 KTM SX 85 19/16 for Sale at Ultimate KTM Gold Coast in Biggera Waters, QLD | Review Specifications, Features & Information

STEP INTO THE BIG LEAGUES

The last step awaits. The KTM 85 SX 19/16 is ready to raise the speed for you. Developed on track and at an international level, the KTM 85 SX 19/16 boasts significantly enhanced handling, searing power delivery and proven READY TO RACE DNA through its components and pedigree. You spoke, we listened. We developed. Now continue the journey. Fast.

Adjustable Suspension

Don't worry about change. The KTM 85 SX's WP XACT suspension is adjustable upfront and rear. The WP XACT AER fork can be easily modified with the use of an air pump. This allows riders to tailor the KTM 85 SX to their specifications, weight, or track conditions. The WP XACT monoshock is fully changeable for preload, compression, and rebound.

Ignition

The KTM 85 SX has a CDI box from Hidria bringing lots of processing power and a fiery ignition curve. The benefits? A faster ignition process, smoother engine operation, and shorter heating time in colder temperatures.

Combustion Chamber

The combustion chamber was recently redesigned with a, smaller spark plug. This makes for more effective and efficient combustion, reducing the compression ratio generating more power and torque.

Engine

The KTM 85 SX holds the kind of firepower that makes it the reference in the start gate. Weighing 120 g less than the previous generation, the engine produces high performance and optimized integration with the chassis. This means punch in the low and mid-RPM range, torque, and reliability.

Factory Performance Kit

Boost the performance of your KTM 85 SX by installing the 105 Factory Kit, ideal for tackling larger track layouts. This kit includes enhanced engine components, a cylinder head, a combustion chamber insert, a CDI control unit, and a spark plug.

Exhaust

Giving this junior rocket its signature 'Braaap!" is a primed exhaust system thanks to an overhauled manufacturing process - just like on the full-size 2-stroke KTM SX range. Seams between individual sheets have been removed so the exhaust flow is optimized, resulting in substantial improvements when it comes to thermodynamics. Simply put - this pipe performs.

Shifting Mechanism

Clicking into gear is even smoother with a recently updated shift drum. Thanks to the coating finish, shifting up and down the 'box is smoother, more reliable, and rock-solid even after many hours of use.

Ergonomics

A carefully scaled-down design mimics the full-sized KTM SX range, so this little weapon has unparalleled aesthetic appeal. What's more, it also provides young riders with an exceptional riding experience and sensation, getting them ready to step up when the time comes.

Throttle cable

Goodbye to kinks, hello to increased durability. We've applied an additional stabilizer cap to the throttle assembly to hike the quality. Now, just hold it open wider and for longer.

Tank

The tank design fits the frame concept and bodywork, providing the ideal support for young knees to grip, and 5.4 liters of screaming fury to rip.

Triple clamps, Bars & Pegs

The triple clamps now have an improved upper fixing mechanism that is more resistant to dirt and water, preserving the lifespan of the steering head bearings. The necessary wrench size has also been reduced to a handy 17mm. The Tapered black Neken-branded handlebars are made of high-quality aluminum alloy ensuring top stability, vibration damping, and safety, while the 'no-dirt' designed footrests offer a bigger surface area to step on while being less susceptible to hooking on deep ruts, and take-offs when scrubbing. The result? Better control, more leverage and more to hold onto when charging down the holeshot. We're also aware that smaller riders might be making their first laps after graduating from the KTM 65 SX so we've provided two length adjustment options for the rear brake lever.

Frame

Premium handling and feel comes through a high-strength chromium molybdenum steel frame design, taken from the full-sized KTM SX range. Together with forged connecting parts, carefully calculated parameters of longitudinal flex and torsional rigidity, and incorporated sheet metal parts allow for tailor-made stiffness. The frame layout features a typical MX design without any cross tube behind the steering head. The rear shock mount is separate from the main upper frame tube like our full-size models, with frame protectors as standard.

Subframe

We still bank on our 1-piece polyamide glass-fiber-reinforced aluminum subframe. Not only does the material reduce the weight of the whole construction, but it also features specifically engineered rigidity, delivering outstanding handling and rider feedback. It's also the perfect spot for integrated electronics, seat support, and hour meter mounting position.

WP XACT Fork

The KTM 85 SX is fitted with a state-of-the-art WP XACT AER fork. These ultra-lightweight, 43 mm USD forks feature exceptional damping and comfort, allowing the rider to push the limit confidently.

WP XACT SHOCK

Mirroring the latest technology found in the full-size motocross range, the KTM 85 SX features a fully adjustable WP XACT monoshock. This is perfectly matched to the front forks, bringing ideal balance and damping characteristics, along with improved traction, a more planted feel, and control at speed.

Wheels and Tires

Keeping the show on the dirt are black Excel-branded rims and CNC machined hubs fitted with MAXXIS MAXXCROSS MX-ST tires. Not only does this combination deliver outstanding performance on a variety of terrain, but the pattern design and rubber compounds deliver exceptional straight-line stability and excellent traction. As always, the KTM 85 SX is available for order with two rims sizes -19/16 and 17/14.

Radiators

The KTM 85 SX features state-of-the-art radiators produced by Pankl, inspired by the full-size SX range. These feature the same design albeit shortened to fit the 85cc needs, size and works to ensure the engine is running at optimal temperatures when being ripped around the track, lap after lap.

Airbox and Filter

The airbox concept has been designed with precisely positioned inlet ducts to prevent air deformation, ensuring maximum airflow and filter protection. The Twin Air filter can be easily accessed without tools by removing the left side panel.

Engine

Design

1-cylinder, 2-stroke engine
Displacement

84.9 cm³
Transmission

6-speed
EMS

Keihin PWK 28
Engine oil

Motorex Formula 4T 15W/50
Clutch primary drive teeth

64
Primary drive

20:64
Clutch

Wet, multi-disc clutch, Formula hydraulics
Engine cylinder

Single cylinder
Engine stroke

2-Stroke

Chassis

Frame design

Central-tube frame with double-cradle
Front brake

Disc brake
Rear brake

Disc brake
Rear subframe design

Aluminium / Polyamide Glass Fiber
Chain

428, Non-sealed

Suspension

Front suspension

XACT 43 WP Upside-Down fork, Ã˜ 43 mm
Rear suspension

XACT WP PDS mono shock
Suspension travel (front)

278 mm
Suspension travel (rear)

289 mm
Front suspension type

WP XACT
Front suspension adjustment

Compression and rebound adjustable
Rear suspension addition

Preload adjuster

Dimensions

Seat height

871 mm
Ground clearance

333 mm
Tank capacity (approx.)

5.4 l

The illustrated vehicles may vary in selected details from the production models and some illustrations feature optional equipment available at additional cost. All information concerning the scope of supply, appearance, services, dimensions and weights is non-binding and specified with the proviso that errors, for instance in printing, setting and/or typing, may occur; such information is subject to change without notice. Please note that model specifications may vary from country to country. In the case of coated surfaces, there may be color differences due to the usual process fluctuations. The consumption values stated refer to the roadworthy series condition of the vehicles at the time of factory delivery.
