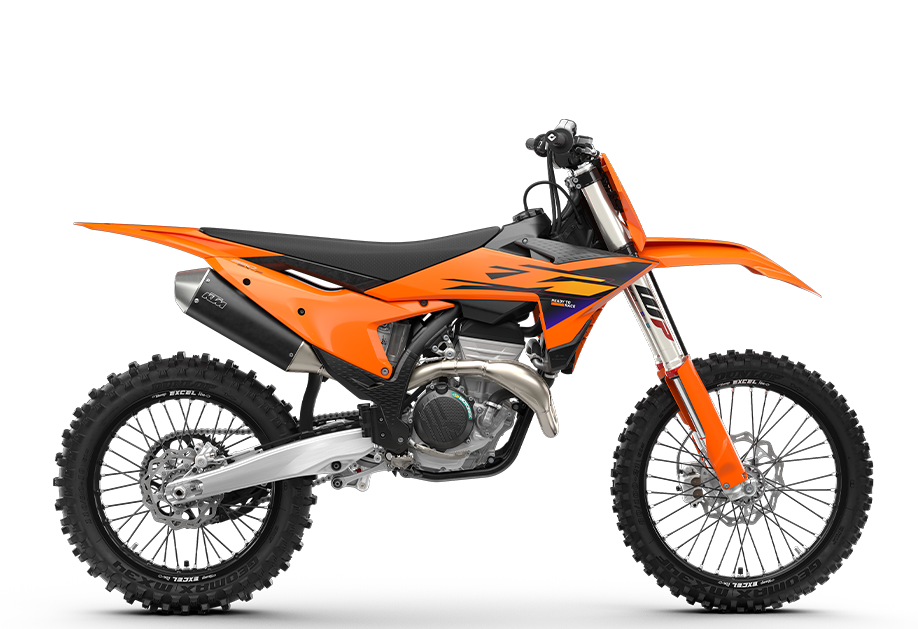

2026 KTM 350 SX-F
2026 KTM 350 SX-F for Sale at Ultimate KTM Gold Coast in Biggera Waters, QLD | Review Specifications, Features & Information
MIDDLE-GROUND MASTERCLASS
With over a decade of racing - and winning - under its seat, the KTM 350 SX-F has long shed its underdog label and proven itself a worthy adversary. Delivering usable power throughout the rev range, unwavering stability at speed, and true championship-winning credentials, the KTM 350 SX-F is once again READY TO RACE.
Engine
-
Design
1-cylinder, 4-stroke engine
-
Displacement
349.7 cm³
-
Transmission
5-speed
-
Fuel-mixture generation
Keihin EFI, throttle body 44 mm
-
EMS
Keihin EMS
-
Clutch primary drive teeth
72
-
Primary drive
24:72
-
Clutch
Wet multi-disc DS clutch, Brembo hydraulics
-
Engine cylinder
Single cylinder
-
Engine stroke
4-Stroke
Chassis
-
Frame design
Central double-cradle-type 25CrMo4 steel
-
Front brake
Disc brake
-
Rear brake
Disc brake
-
Rear subframe design
Aluminum-reinforced polyamide
-
Chain
520, Non-sealed
Suspension
-
Front suspension
WP XACT-USD (AER), Ø 48 mm
-
Rear suspension
WP XACT Monoshock with linkage
-
Suspension travel (front)
310 mm
-
Suspension travel (rear)
300 mm
-
Front suspension adjustment
Compression (high and low speed), rebound
-
Rear suspension setting
Compression and rebound adjustable
Dimensions
-
Seat height
958 mm
-
Ground clearance
343 mm
-
Tank capacity (approx.)
7.2 l
The illustrated vehicles may vary in selected details from the production models and some illustrations feature optional equipment available at additional cost. All information concerning the scope of supply, appearance, services, dimensions and weights is non-binding and specified with the proviso that errors, for instance in printing, setting and/or typing, may occur; such information is subject to change without notice. Please note that model specifications may vary from country to country.
The consumption values stated refer to the roadworthy series condition of the vehicles at the time of factory delivery.
